Prestige CA12RCY - H1152-08 4.5" Coated Paper Cone Woofer

Natural rubber surround and handcoated paper cone with coated fabric dust cap, reduce resonances and distortion. Large magnet system and a symmetrical driving force accomplished through a special coil winding technique for the voice coil gives an excellen

104,95 €
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Overené VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

Highlights

  • Natural rubber surround and handcoated paper cone with coated fabric dust cap, reduce resonances and distortion
  • Large magnet system and symmetrical driving force
  • Very large magnet system allows a reasonable efficiency and a low Q



Product details

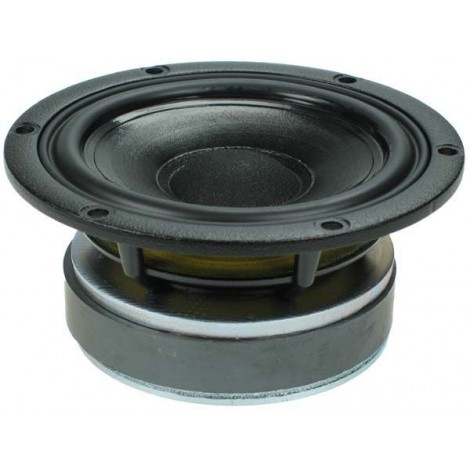

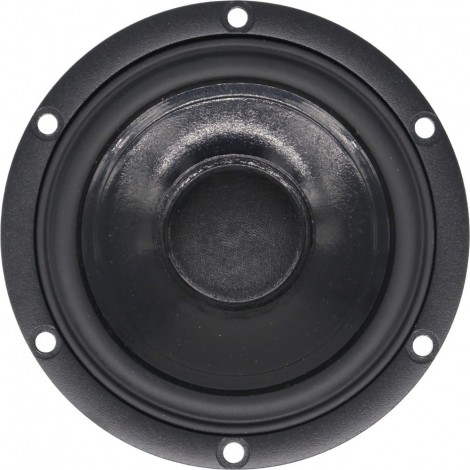

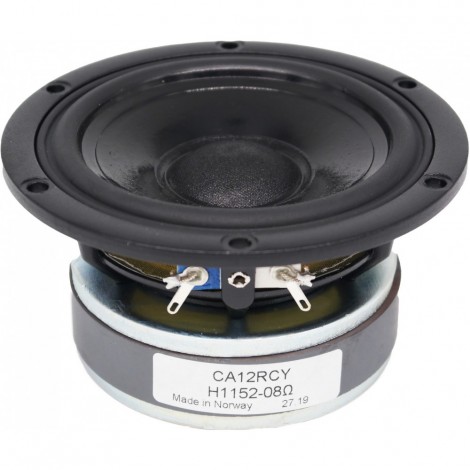

Seas Prestige CA12RCY - H1152-08 4.5" Coated Paper Cone Woofer



Natural rubber surround and handcoated paper cone with coated fabric dust cap, reduce resonances and distortion. Large magnet system and a symmetrical driving force accomplished through a special coil winding technique for the voice coil gives an excellent linearity. Very large magnet system provides a reasonable efficiency and a low Q.



Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

SICA12RCY

Data sheet

Impedance
8 Ohm
Driver type
Midwoofer
Sensitivity
86 dB 2.83V/1m
Frequency range
45 - 5000 Hz
Resonance frequency (fs)
57 Hz
DC resistance (Re)
6.4 ohms
Mechanical Q (Qms)
2.17
Electrical Q at Fs (Qes)
0.36
Total Q factor (Qts)
0.31
Speaker diameter
4"
Power handling
200 W
Voice coil inductance (L)
1.05 mH
Effective mechanical mass incl air load (mms)
6.1g
Equivalent volume of compliance (Vas)
0.17 ft.³
Overall diameter
4.74"
Mounting diameter
3.77"
