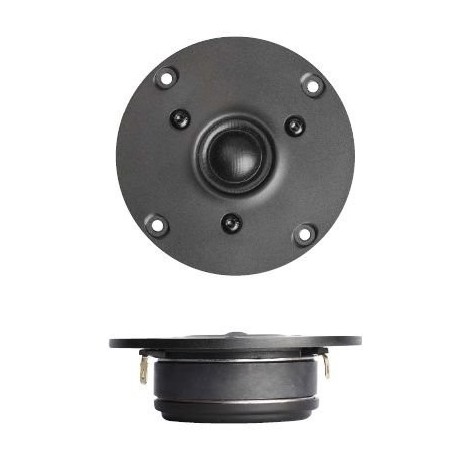

SB21SDC-C000-4 Ring Dome Tweeter

The SB21SDC-C000-4’s large surround dome allows the increase of its acoustic output. Dual balanced compression chamber for improved dynamics. Saturation controlled motor system for low distortion and low resonance frequency.

39,95 €
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Overené VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

Highlights

  • Large surround dome for increased acoustic output
  • Dual balanced compression chamber for improved dynamics
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Saturation controlled motor system for low distortion
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency



Product details

SB Acoustics SB21SDC-C000-4 Ring Dome Tweeter



The SB21SDC-C000-4’s large surround dome allows the increase of its acoustic output. Dual balanced compression chamber for improved dynamics. Saturation controlled motor system for low distortion and low resonance frequency.



Specifications: BL Product (BL): 1.5 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.25 g • Surface Area of Cone (Sd): 4.9 cm2

SISB21SDCC0004

Data sheet

Impedance
4 Ohm
Driver type
Tweeter
Sensitivity
91 dB 2.83V/1m
Resonance frequency (fs)
720 Hz
DC resistance (Re)
3.1 ohms
Mechanical Q (Qms)
2.41
Electrical Q at Fs (Qes)
1.55
Total Q factor (Qts)
0.95
