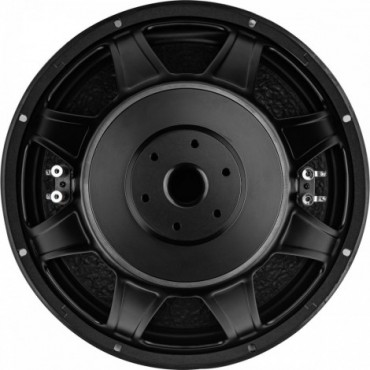

MX15-22 15" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil
The Max-X MX15-22 15" dual voice coil high excursion subwoofer from Dayton Audio is built for incredible low frequency extension and high SPL. This affordable driver combines durability, efficiency, and maximum displacement into a great looking speaker th
SIMX1522
Data sheet
- Sensitivity
- 90.2dB 2.83V/1m
- Frequency range
- 18 - 400Hz
- Resonance frequency (fs)
- 21.7Hz
- DC resistance (Re)
- 3.99Ω
- Mechanical Q (Qms)
- 4.27
- Electrical Q at Fs (Qes)
- 0.46
- Total Q factor (Qts)
- 0.4
- Speaker diameter
- 15"
- Power handling
- 1600 W
- Voice coil inductance (L)
- 5.51mH
- Effective mechanical mass incl air load (mms)
- 348g
- Effective piston radiating area (Sd)
- 819.8cm²
- Force factor (BL)
- 20.6T·m
- Equivalent volume of compliance (Vas)
- 5.16ft³
- Overall diameter
- 15.42"
- Mounting diameter
- 14.01"
The Max-X MX15-22 15" dual voice coil high excursion subwoofer from Dayton Audio is built for incredible low frequency extension and high SPL. This affordable driver combines durability, efficiency, and maximum displacement into a great looking speaker th
