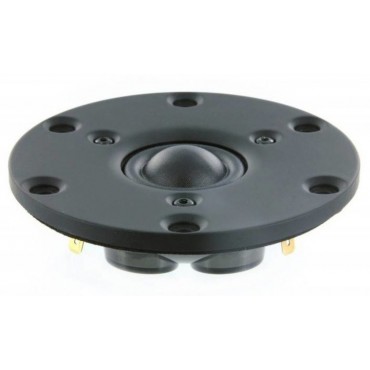

Illuminator D3004/660000 1" Textile Dome Tweeter

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion.

209,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Highlights

  • 1" Textile Dome Diaphragm
  • Patented Symmetrical Drive (SD-2) motor
  • Die Cast Rubber Painted Alu Face Plate
  • Large Roll Surround for Wide Dispersion
  • AirCirc Motor Design w. 6 Neo magnets



Product details

Scan-Speak Illuminator D3004/660000 1" Textile Dome Tweeter



The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.



Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.33 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm 2

SID3004660000

Adatlap

Impedance
4 Ohm
Driver type
Tweeter
Sensitivity
91.5 dB 2.83V/1m
Resonance frequency (fs)
470 Hz
DC resistance (Re)
3 ohms
Mechanical Q (Qms)
3
Electrical Q at Fs (Qes)
0.59
Total Q factor (Qts)
0.49
