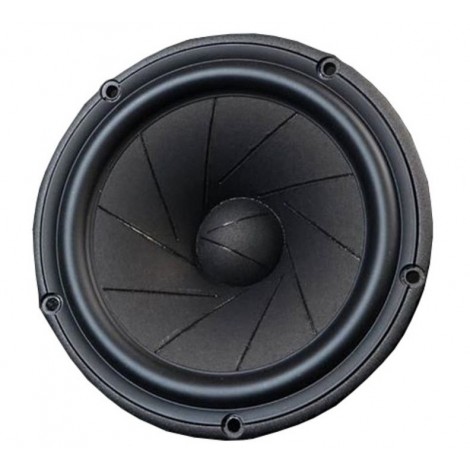

Revelator 18W/4531G01 7" Woofer

The 18W/4531G01 features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, "Grasshopper" cast chassis with maximized air flow and resonance terminating mounting system. Less resonance in all structures, lower compr

214,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Verified by VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

Highlights

  • Patented Symmetrical Drive Motor Design
  • Wood Fibre Cone
  • Low Damping SBR Rubber Surround
  • Sliced Cone (Controls Cone Breakups)
  • Low-Loss linear suspension
  • Large Ferrite Magnet System



Product details

Scan-Speak Revelator 18W/4531G01 7" Woofer



The 18W/4531G01 features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, "Grasshopper" cast chassis with maximized air flow and resonance terminating mounting system. Less resonance in all structures, lower compression and higher linearity, faster termination of excess energy and higher sound pressure capability. The 18W/4531G should have an F3 of about 65Hz sealed and 40Hz vented. Also an excellent choice for high end autosound applications.

SI18W4531G01

Adatlap

Impedance
4 Ohm
Driver type
Midwoofer
Sensitivity
90 dB 2.83V/1m
Resonance frequency (fs)
33 Hz
DC resistance (Re)
3.4 ohms
Mechanical Q (Qms)
5.20
Electrical Q at Fs (Qes)
0.38
Total Q factor (Qts)
0.35
Speaker diameter
7"
Effective mechanical mass incl air load (mms)
17.5g
Effective piston radiating area (Sd)
150 cm2
Force factor (BL)
5.7 Tm
Equivalent volume of compliance (Vas)
1.47 ft.³
