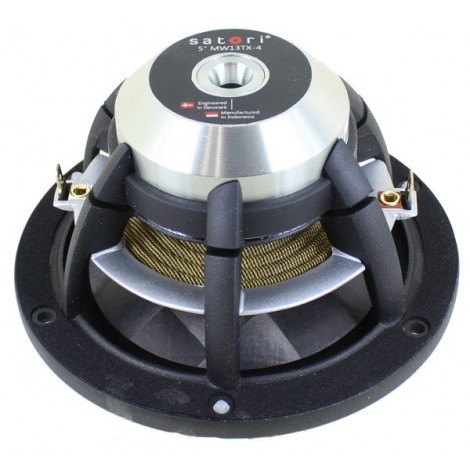

Satori MW13TX-4 TeXtreme 5" Cone Mid-Woofer - 4 Ohms

30.5mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis

274,95 €
Adóval együtt
Mennyiség

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Verified by VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

Highlights

  • Advanced TeXtreme® cone
  • Vented aerodynamic cast aluminium chassis
  • Soft low damping rubber surround
  • Advanced BIMAX spider
  • Powerful optimized low distortion neodymium motor



Product Details

SB Acoustics Satori MW13TX-4 TeXtreme 5" Cone Mid-Woofer - 4 Ohms



Premium 5" woofer with Neodymium magnet, aerodynamic chassis and woven TeXtreme cone. TeXtreme is an advanced, super-thin carbon fibre fabric that maximizes the strength-to-weight ratio. The spread tow technology offers several advantages over regular Spread tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). The laminated thin-ply TeXtreme® material has an excellent stiffness-to-weight ratio (though surpassed by beryllium, it is also significantly less expensive). Available in 4-ohms and 8-ohms models.

SIMW13TX4

Adatlap

Impedance
4 Ohm
Driver type
Midrange
Sensitivity
89 dB 2.83V
Resonance frequency (fs)
38Hz
DC resistance (Re)
3.8Ω
Mechanical Q (Qms)
5.08
Electrical Q at Fs (Qes)
0.27
Total Q factor (Qts)
0.26
Voice coil inductance (L)
0.16mH
Effective mechanical mass incl air load (mms)
7.4g
Effective piston radiating area (Sd)
70cm²
Equivalent volume of compliance (Vas)
16 litres
