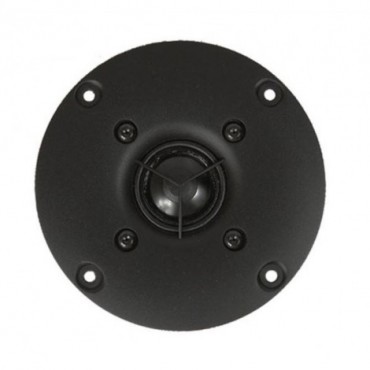

SB26ADC-C000-4 Aluminum Dome Tweeter
The dome and surround have been designed to push the "break-up" to frequencies beyond the audible range. This tweeter has all the detail that a metal dome provides without the objectionable break-up.
Highlights
- Phase optimized diaphragm design for coherent high frequency radiation
- Copper cap for reduced voice coil inductance and minimum phase shift
- Saturation controlled motor system for low distortion
- Non-reflective rear chamber with optimized damping for improved dynamics
- Flow optimized vented pole piece for optimum coupling to rear chamber
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency
Product details
SB Acoustics SB26ADC-C000-4 Aluminum Dome Tweeter
The dome and surround have been designed to push the "break-up" to frequencies beyond the audible range. This tweeter has all the detail that a metal dome provides without the objectionable break-up.
Specifications: BL Product (BL): 1.6 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.38 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm2
SISB26ADCC0004
Adatlap
- Impedance
- 4 Ohm
- Driver type
- Tweeter
- Sensitivity
- 90 dB 2.83V/1m
- Resonance frequency (fs)
- 680 Hz
- DC resistance (Re)
- 3.2 ohms
- Mechanical Q (Qms)
- 2.9
- Electrical Q at Fs (Qes)
- 2
- Total Q factor (Qts)
- 1.2
The dome and surround have been designed to push the "break-up" to frequencies beyond the audible range. This tweeter has all the detail that a metal dome provides without the objectionable break-up.
