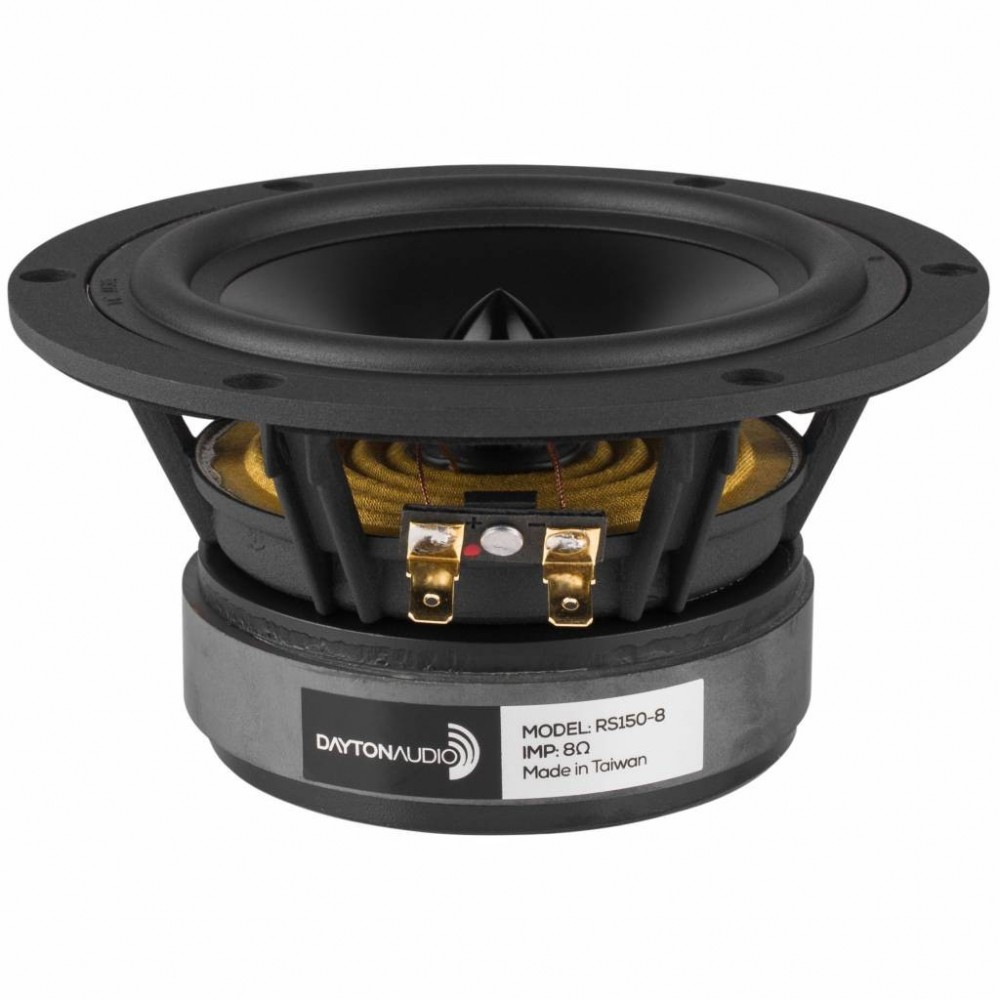

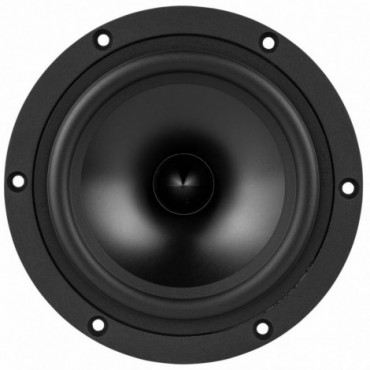

RS150-8 6" Reference Woofer

Adatlap

Impedance

8 Ohm

Driver type

Midwoofer

Sensitivity

88.7 dB @ 2.83V/1m

Frequency range

47 - 4200 Hz

Resonance frequency (fs)

47.8 Hz

DC resistance (Re)

6.3 ohms

Mechanical Q (Qms)

1.66

Electrical Q at Fs (Qes)

0.43

Total Q factor (Qts)

0.34

Speaker diameter

6"

Power handling

80 W

Voice coil inductance (L)

0.55 mH @ 1 kHz

Effective mechanical mass incl air load (mms)

7.4g

Effective piston radiating area (Sd)

85 cm²

Force factor (BL)

5.59 Tm

Equivalent volume of compliance (Vas)

16.6 liters

Overall diameter

150 mm

Mounting diameter

121.5 mm
