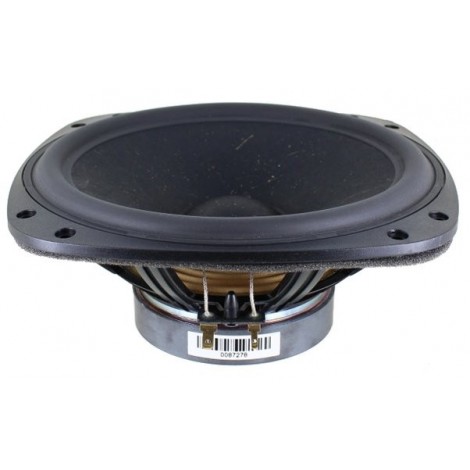

SB20PFC30-8 8" Paper Cone Woofer

The SB Acoustics SB20PFC30-8 is an 8" papyrus fiber paper cone woofer with a great value for its build quality and performance. Its components make it a good choice for many different enclosure types.

€42.95
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Verified by VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

Highlights

  • Vented reinforced plastic chassis
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for improved transient response
  • Large spider for improved linearity
  • Optimized motor system
  • Vented coil former for low compression
  • Non-resonant long life lead wires



Product details

SB Acoustics SB20PFC30-8 8" Paper Cone Woofer



The SB Acoustics SB20PFC30-8 is an 8" papyrus fiber paper cone woofer with a great value for its build quality and performance.  Its components make it a good choice for many different enclosure types. An extended and smooth frequency response suggests simple crossovers, even none at all.

SISB20PFC308

Data sheet

Impedance
8 Ohm
Driver type
Midwoofer
Sensitivity
90.5 dB 2.83V/1m
Resonance frequency (fs)
34 Hz
DC resistance (Re)
5.6 ohms
Mechanical Q (Qms)
2.66
Electrical Q at Fs (Qes)
0.43
Total Q factor (Qts)
0.37
Speaker diameter
8"
Voice coil inductance (L)
0.84 mH
Effective mechanical mass incl air load (mms)
21.2 g
Effective piston radiating area (Sd)
216 cm2
Force factor (BL)
7.7 Tm
Equivalent volume of compliance (Vas)
2.33 ft.³
