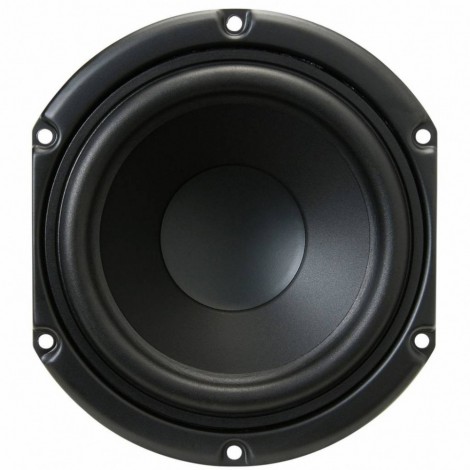

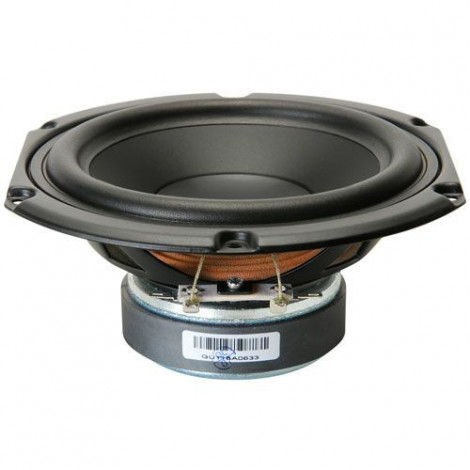

SDS-P830656 5-1/4" Paper Cone SDS Woofer

The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today.

€29.95
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today.



Highlights

  • Premium sculpted stamped steel chassis
  • Coated paper cone with rubber edge
  • Smooth, extended response



Product details

Peerless by Tymphany SDS-P830656 5-1/4" Paper Cone SDS Woofer



The SDS compact subwoofer family offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 5.25 inch 8 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel basket, shaped to fit into narrow cabinets.

SISDSP830656

Data sheet

Driver type
Midwoofer
Sensitivity
84.5 dB 2.83V/1m
Frequency range
50 - 5000Hz
Resonance frequency (fs)
57 Hz
DC resistance (Re)
6.1 ohms
Mechanical Q (Qms)
3.6
Electrical Q at Fs (Qes)
0.7
Total Q factor (Qts)
0.59
Speaker diameter
5"
Power handling
110 W
Voice coil inductance (L)
0.37 mH
Effective mechanical mass incl air load (mms)
9.3g
Effective piston radiating area (Sd)
86.6 cm²
Force factor (BL)
5.36 Tm
Equivalent volume of compliance (Vas)
0.31 ft.³
Overall diameter
5.98"
Mounting diameter
4.61"
