Elite EW 638 6" Woofer

Morel Elite Series 6" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits.

€244.95
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Verified by VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

Morel Elite Series 6" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits.



Highlights

  • DPC (Damped Polymer Composite) cone material
  • Large diameter Hexatech™ aluminum voice coil
  • Hybrid™ neodymium/ferrite magnet
  • Uniflow™ chassis removes air restrictions
  • High power handling



Product details

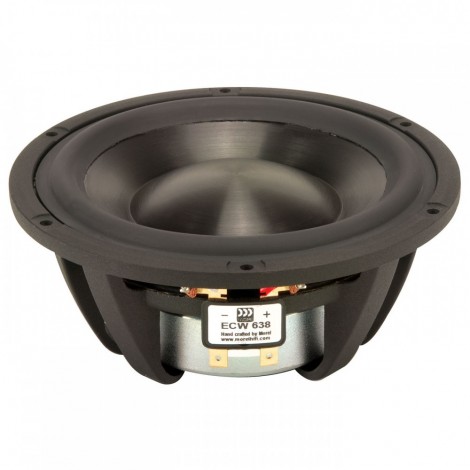

Morel Elite EW 638 6" Woofer



Morel Elite Series 6" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits. Frequency response is extremely flat and overall definition is superb. Suitable for the most demanding audio reproduction systems. Latest version of Morel's MW-167, HU-631, and HU-621 drivers.

SIEW638

Data sheet

Impedance
8 Ohm
Driver type
Midwoofer
Sensitivity
87 dB 2.83V/1m
Frequency range
40 - 4000 Hz
Resonance frequency (fs)
39 Hz
DC resistance (Re)
5 ohms
Mechanical Q (Qms)
1.71
Electrical Q at Fs (Qes)
0.39
Total Q factor (Qts)
0.32
Speaker diameter
6"
Power handling
1
Voice coil inductance (L)
0.52 mH
Effective mechanical mass incl air load (mms)
16g
Effective piston radiating area (Sd)
119 cm²
Force factor (BL)
0.85 Tm
Equivalent volume of compliance (Vas)
0.72 ft.³
Overall diameter
6.3"
Mounting diameter
5.512"
