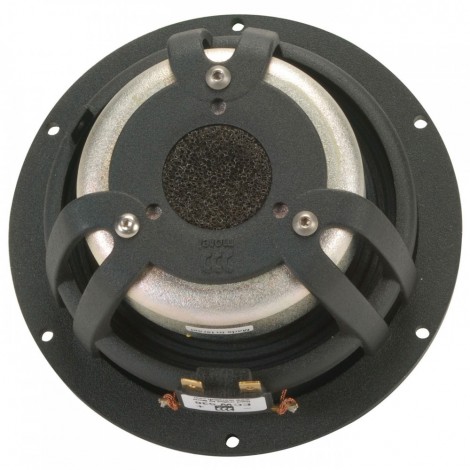

Elite EW 536 5" Woofer
Morel Elite Series 5" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits.
Morel Elite Series 5" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits.
Highlights
- DPC (Damped Polymer Composite) cone material
- Large diameter Hexatech™ aluminum voice coil
- Hybrid™ neodymium/ferrite magnet
- Uniflow™ chassis removes air restrictions
- High power handling
Product details
Morel Elite EW 536 5" Woofer
Morel Elite Series 5" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits. Frequency response is extremely flat and overall definition is superb. Suitable for the most demanding audio reproduction systems. Latest version of Morel's MW-143, HU-531, and HU-521 drivers.
SIEW536
Data sheet
- Impedance
- 6 Ohm
- Driver type
- Midwoofer
- Sensitivity
- 88 dB 2.83V/1m
- Frequency range
- 40 - 4500 Hz
- Resonance frequency (fs)
- 45 Hz
- DC resistance (Re)
- 4.5 ohms
- Mechanical Q (Qms)
- 1.16
- Electrical Q at Fs (Qes)
- 0.28
- Total Q factor (Qts)
- 0.22
- Speaker diameter
- 5"
- Power handling
- 1
- Voice coil inductance (L)
- 0.38 mH
- Effective mechanical mass incl air load (mms)
- 13g
- Effective piston radiating area (Sd)
- 88 cm²
- Force factor (BL)
- 1 Tm
- Equivalent volume of compliance (Vas)
- 0.36 ft.³
- Overall diameter
- 5.63"
- Mounting diameter
- 4.76"
