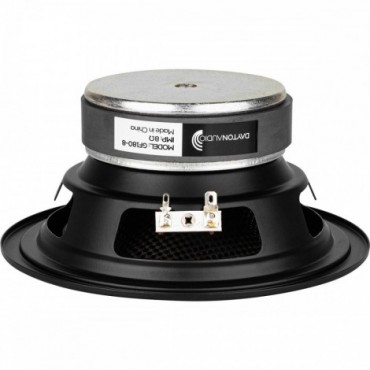

GF180-8 6-1/2" Glass Fiber Cone Woofer 8 Ohm

Dayton Audio’s GF180-8 6-1/2” glass fiber cone woofer is built to produce powerful bass with smooth midrange response. The woven fiberglass cone and rubber surround damps cone resonances allowing an easy transition to tweeters when crossed over at 2,000 H

€38.45
Tax included
Quantity

Payment
discover visa googlewallet paypal mastercard americanexpress

Logo: CardPay Logo: VISA Logo: VISA Electron Logo: MasterCard Logo: Maestro Logo: Diners Club International Logo: Verified by VISA Logo: MasterCard SecureCode Logo: Apple Pay Logo: Google Pay

SIGF1808

Data sheet

Impedance
8 Ohm
Sensitivity
87.9dB 2.83V/1m
Frequency range
50 - 5000Hz
Resonance frequency (fs)
53Hz
DC resistance (Re)
8Ω
Mechanical Q (Qms)
3.07
Electrical Q at Fs (Qes)
0.6
Total Q factor (Qts)
0.5
Speaker diameter
6.5"
Power handling
80 W
Voice coil inductance (L)
1.9mH
Effective mechanical mass incl air load (mms)
13.9g
Effective piston radiating area (Sd)
130.2cm²
Force factor (BL)
7.9T·m
Equivalent volume of compliance (Vas)
0.55ft³
Overall diameter
7"
Mounting diameter
5.67"
