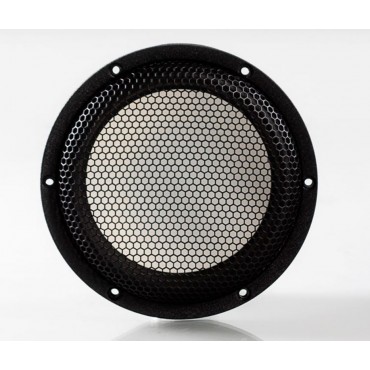

Accuton C158-6-851
6.25 inch bass-midrange for small bookshelf monitors or slim floorstanders
6.25 inch bass-midrange for small bookshelf monitors or slim floorstanders
38mm titanium voice coil former120mm ferrite motor for high performance in small enclosures
Long excursion design for high SPL capabilities
LS-T-c158-6-851
Data sheet
- Impedance
- 6 Ohm
- Driver type
- Midwoofer
- Sensitivity
- 88 dB
- Resonance frequency (fs)
- 30 Hz
- DC resistance (Re)
- 6.3 ohms
- Mechanical Q (Qms)
- 5.1
- Electrical Q at Fs (Qes)
- 0.3
- Total Q factor (Qts)
- 0.28
- Speaker diameter
- 6.5"
- Power handling
- 120 W
- Voice coil inductance (L)
- 0.73 mH
- Effective piston radiating area (Sd)
- 113 cm2
- Force factor (BL)
- 8.7
- Equivalent volume of compliance (Vas)
- 26.4 L
- Maximum peak linear excursion vibration (xlin)
- +/- 5mm
6.25 inch bass-midrange for small bookshelf monitors or slim floorstanders
